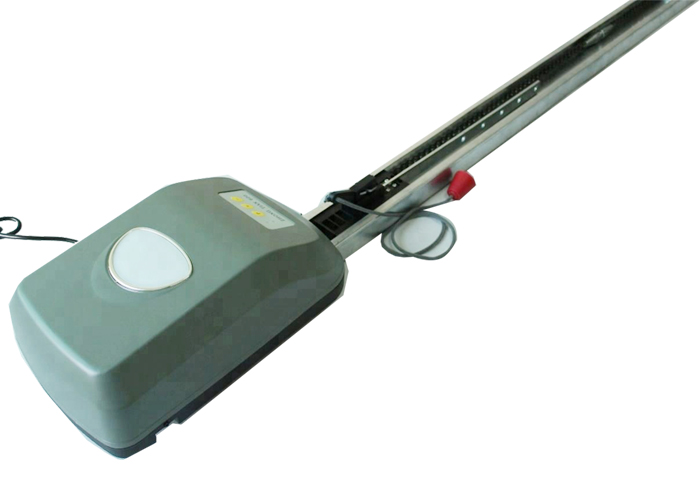

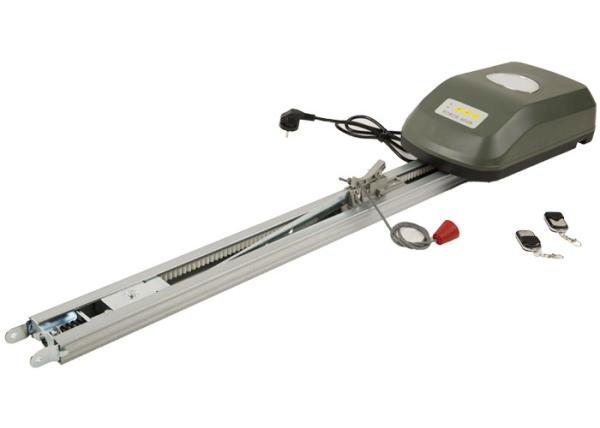

Overhead battery operated garage door opener with DC motor for
residential door
Model No.: ZTGD(II)-600
ZTGD(II)-600 Overhead battery operated garage door opener, its 24V
DC motor operates most residential sectional doors weighing up to
350 lbs within 7 square meter. Integrated backup battery operates
this garage door opener when your power goes out up to 50 cycles
from initial power failure. This transition from home power to
running on the battery happens instantly when the main power is
out. This garage door opener includes many accessories for safety
and convenience. Included are two pre-programmed 4-button garage
door openers remotes, a wireless keypad. The Genie Safe-Beams
garage door safety sensors ensure your family's safety with an
infrared beam of light across the door opening.
SPECIFICATION:
Overhead garage door openers with 24 VDC motor
Pull and Push Force: 600N
Motor Power: 110W
Apply Door Area: 7 M2
Rail Length: 3m, 3.3m, 3.6m, 3.9m
Running Speed: 120mm/s
Rated Voltage: AC 220~240V, 50-60HZ
Opener Noise: <60DB
Remote Control Code: Rolling Code
Remote Frequency: 433.92MHZ
Remote Distance: 25-35m
Temperature Range: -25C~70C
Features:
For residential sectional garage doors within 7 square meter
24V DC motor will smoothly lift a sectional garage door up
Backup Battery operates garage door opener when power off, up to 50
cycles
Opens door smoothly with soft starts and stops
Electronic limit setting provides precise door travel control
Door will reverse automatically if be obstructed during close
Emergency manual release handle
Control your garage door from anywhere with your smart device
through Wifi
CE/TUV certificated
Standard Package includes:
1 pc residential garage door opener
1 steel rail set
2 Remotes controls
1 pc chain/Belt and trolley Assembly
1 set of mounting hardware kit
2 pcs remote controls
1 pc Manual unlocking rope
1 pc installation manual
